Calculation method

Michał Wasiewicz Updated by Michał Wasiewicz

Functionality overview - Calculation method

The Calculation method defines how the system automatically derives the result of a given quality test based on the values of two related tests: Test A and Test B.

Standard Calculation Formulas

In the standard application, four predefined methods are available:

  • Inherit – A
  • Addition – A + B
  • Subtraction – A − B
  • Color – A + (B / 10)

These methods cover only basic calculation scenarios. However, many organizations require more specific logic that cannot be represented using the standard set. To address this gap, the system introduces a configurable option that enables users to define their own calculation logic.

Custom Calculation Method

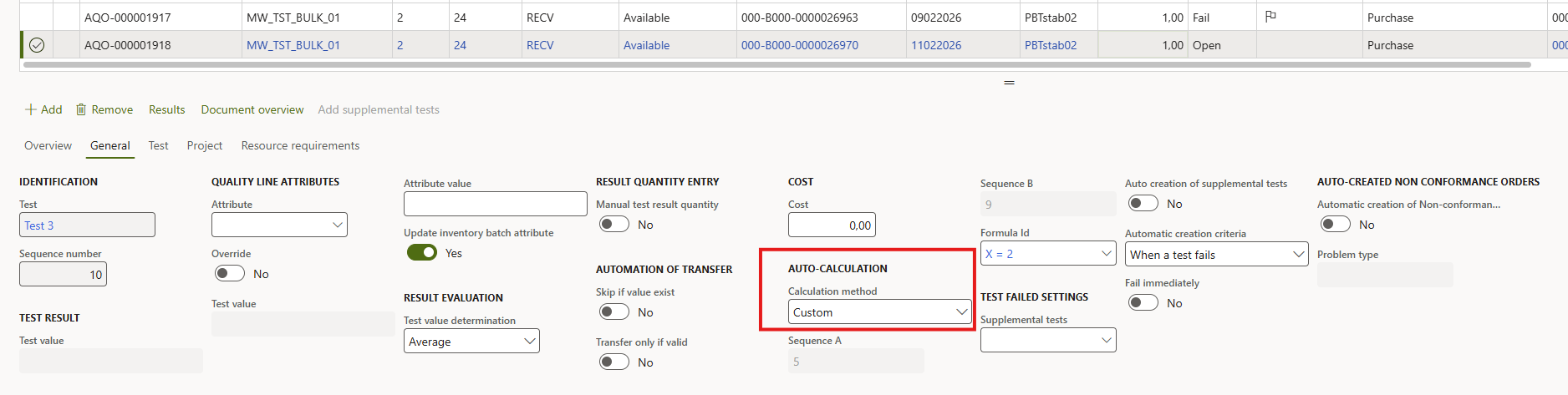

A new method called Custom is added to the existing calculation method list. When the user selects the Custom method for a test, the system displays an additional field where a predefined calculation formula can be selected.

The list of available formulas is maintained separately and appears in the Calculation formula field.

Custom Calculation Formulas

Users can define formulas based on a fixed structure. The editable element is limited to a single parameter, ensuring easy maintenance and preventing incorrect formula design.

Supported formula structure

A * x^(1 - B)
  • A – value of Test A
  • B – value of Test B
  • x – user-defined parameter (display name in the form: Shear rate)

Users can configure only the Shear rate parameter; it means that only x factor can be defined. The formula structure itself cannot be changed in this version.

Configuration - Calculation method

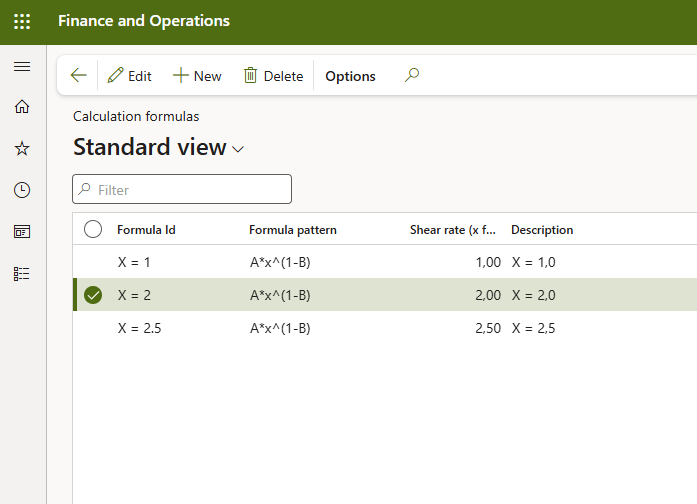

Custom formulas are defined in a new form available under: Quality > Setup > Quality control > Calculation formulas, as shown in the figure below:

All formulas created in this form are available for selection when a test uses the Custom calculation method.

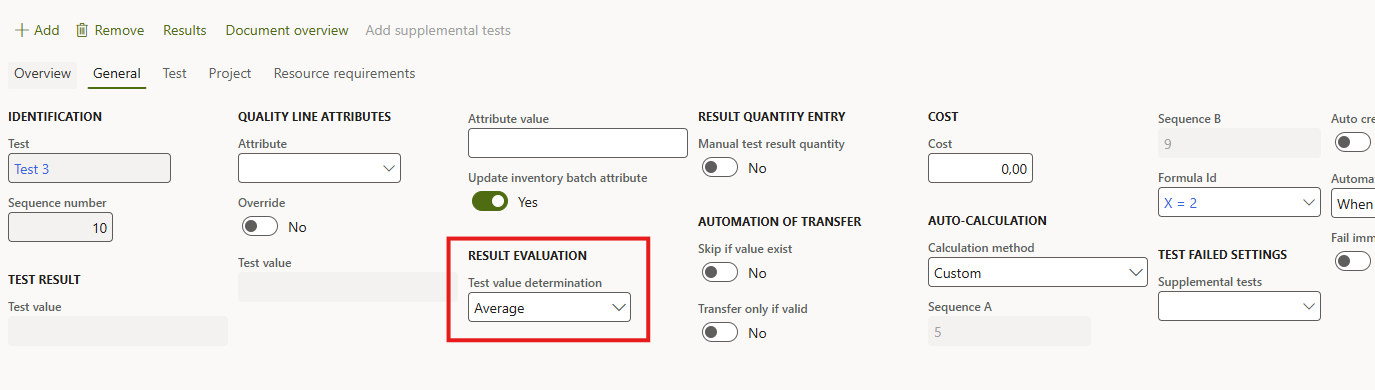

For all tests using in the calculation (selected as A and B), as well as for the resulting test, Test value determination must be selected., as shown in the figure below.
Sequence filters are not supported for this functionality.
