Push / pull data manually

Dawid Kaczmarek Updated by Dawid Kaczmarek

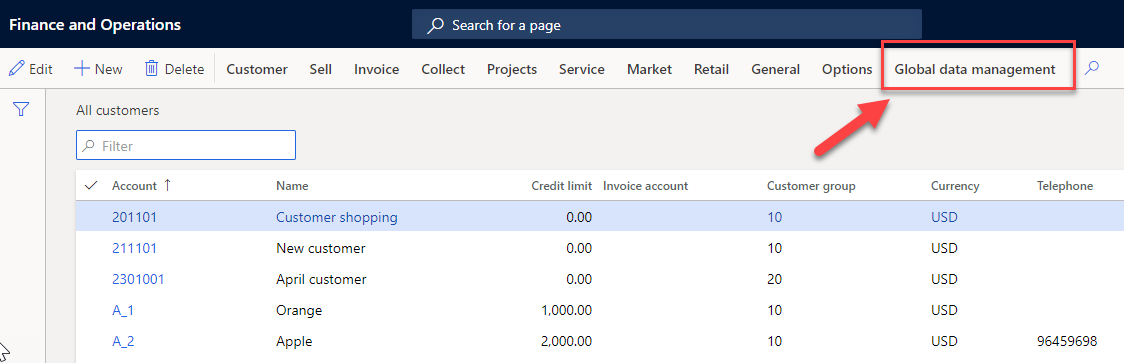

The access to handle data in Cepheo GDM is through the button Global data management in the ribbon on the list page or detail page. The ribbon and buttons are auto generated on the forms selected in the Management -> Table setup (see 4.1 Table setup).

The Cepheo GDM ribbon is available on the form in a local company if:

The Cepheo GDM ribbon is available on the form in a local company if:

  • the form is specified for a table in the Management form (see 4.1 Table setup)
  • the company is part of an active company group specified for the table in the selection management (see 4.6 Selection management23)

The functions available through the Cepheo GDM button:

  • In global company:
  • Push data
  • Record updates
  • In local companies
  • Pull data
  • Create data (depending on setup)
  • Edit data (depending on setup)
  • Record updates
Push data

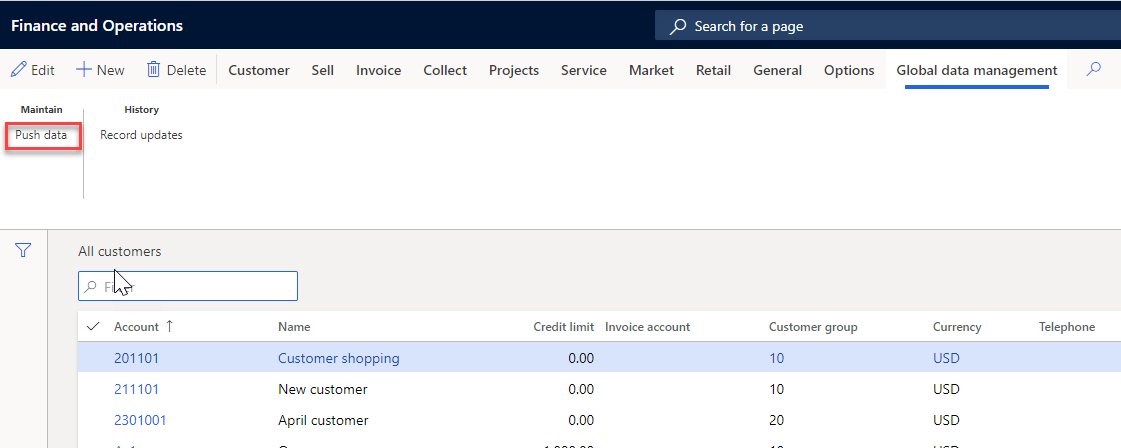

To push data manually from the global company to the local companies press the Push data button on the Global data management tab on the action pane of a form.

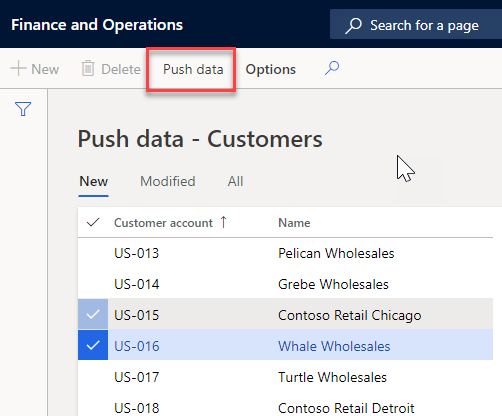

By pressing the Push records button, the system opens the form for selection of records. Choose between viewing New / Modified / All, mark the record(s) to be pushed and select Push data.

By pressing the Push records button, the system opens the form for selection of records. Choose between viewing New / Modified / All, mark the record(s) to be pushed and select Push data.

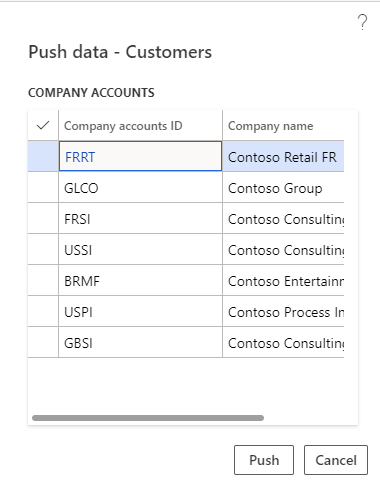

Then the next form opens, and the source companies must be marked. Select the companies where data needs to be pushed and press the Push button.

Then the next form opens, and the source companies must be marked. Select the companies where data needs to be pushed and press the Push button.

Embedded Image

Embedded Image

Pull data

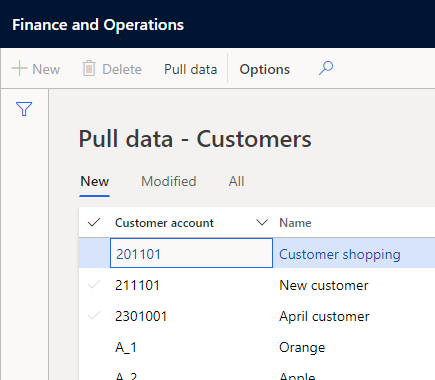

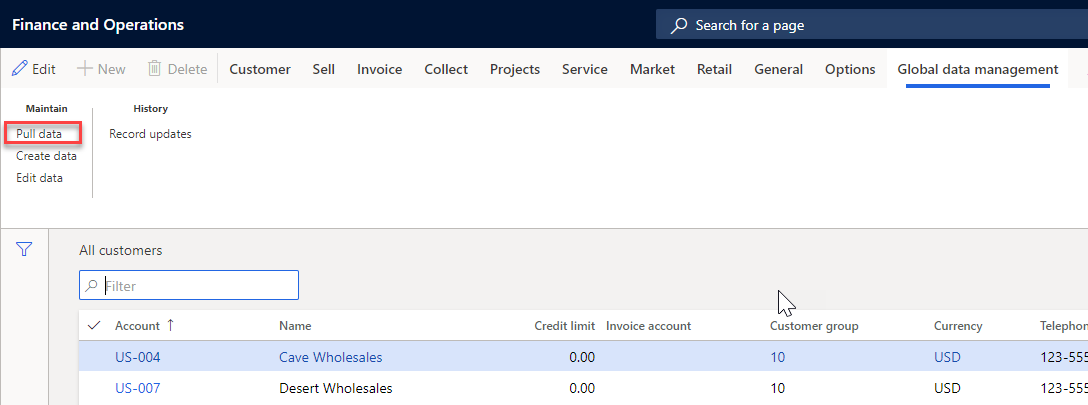

In the local companies the data can be pull from de master data company. Press Pull data and choose the data that should be pulled to the local company.

Choose between viewing New / Modified / All, mark the record(s) to be pulled and select Pull data.

Choose between viewing New / Modified / All, mark the record(s) to be pulled and select Pull data.

Embedded Image

Embedded Image

Forms with multiple datasources

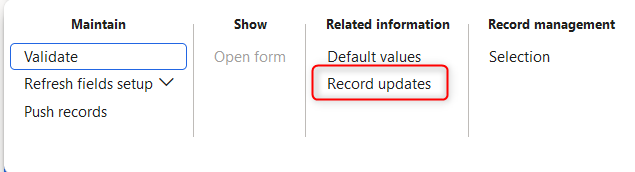

If the form with specific data combines multiple datasources, by default, only the primary one can be pushed manually to local companies directly from the location. The other tables need to be pushed from the Global Data Management/Common/Management (under Record updates; See chapter ‘RECORD UPDATES’ for details).

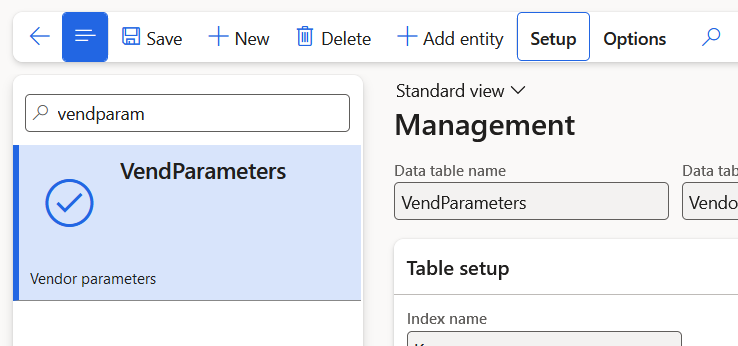

The example would be Accounts payable parameters page, where fields from PurchParameters and VendParameters are available in one form. If PurchParameters table has been connected to the form, only updates to this table can be processed inside Accounts payabale parameters form. Also, only updates to this table would be visible under Record updates for this particular page. Processing/browsing updates for VendParameters would be available only in the GDM module’s table definition (Record updates page).

The example would be Accounts payable parameters page, where fields from PurchParameters and VendParameters are available in one form. If PurchParameters table has been connected to the form, only updates to this table can be processed inside Accounts payabale parameters form. Also, only updates to this table would be visible under Record updates for this particular page. Processing/browsing updates for VendParameters would be available only in the GDM module’s table definition (Record updates page).

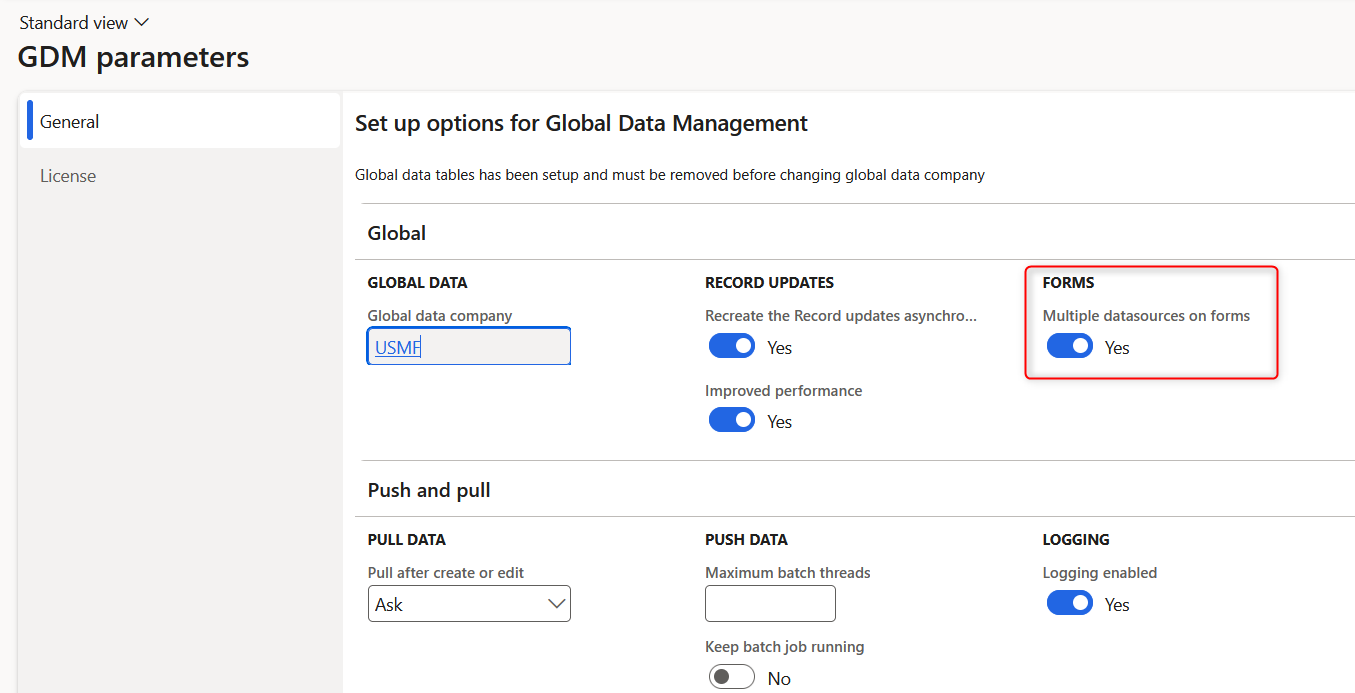

If a support for multiple data sources management is required on a form level, Multiple datasources on forms parameter needs to be turned on (GDM/Setup/GDM parameters).

If a support for multiple data sources management is required on a form level, Multiple datasources on forms parameter needs to be turned on (GDM/Setup/GDM parameters).

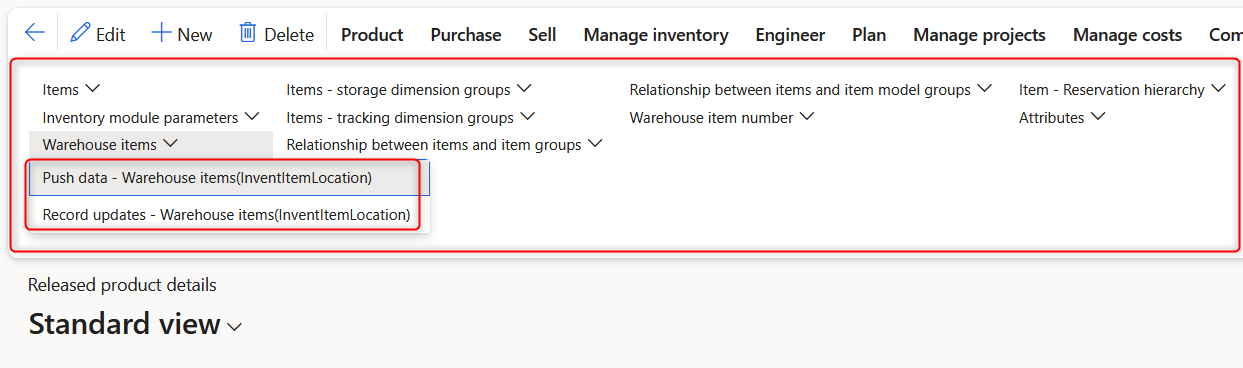

With the parameter on, the layout of the Global Data Management tab will present all available (enabled in GDM) datasource options grouped under separate buttons, with Push/Pull and Record update browsing functions available.

With the parameter on, the layout of the Global Data Management tab will present all available (enabled in GDM) datasource options grouped under separate buttons, with Push/Pull and Record update browsing functions available.

Setting the parameter back to No will restore the original layout.

Setting the parameter back to No will restore the original layout.

Note: support for multiple datasources on forms might have an impact on system’s performance. Unless it’s an indispensable option, the recommendation is to keep the default setting.
